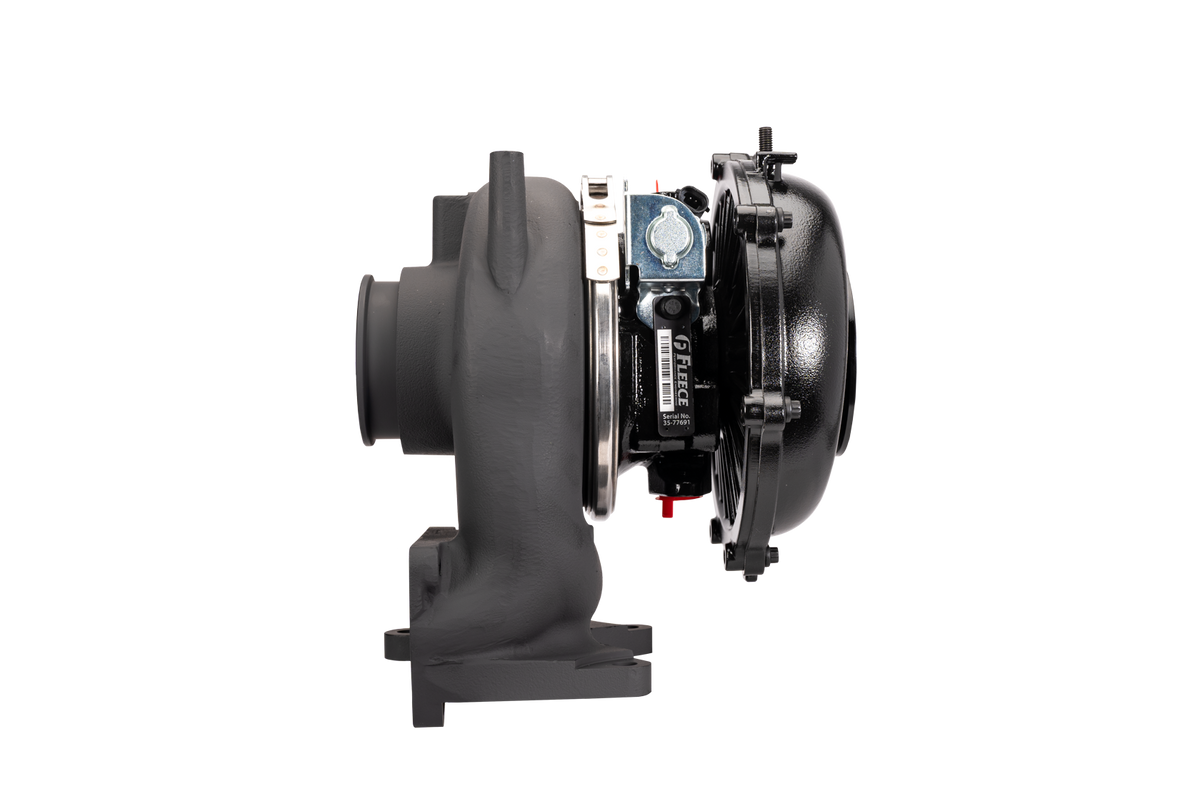

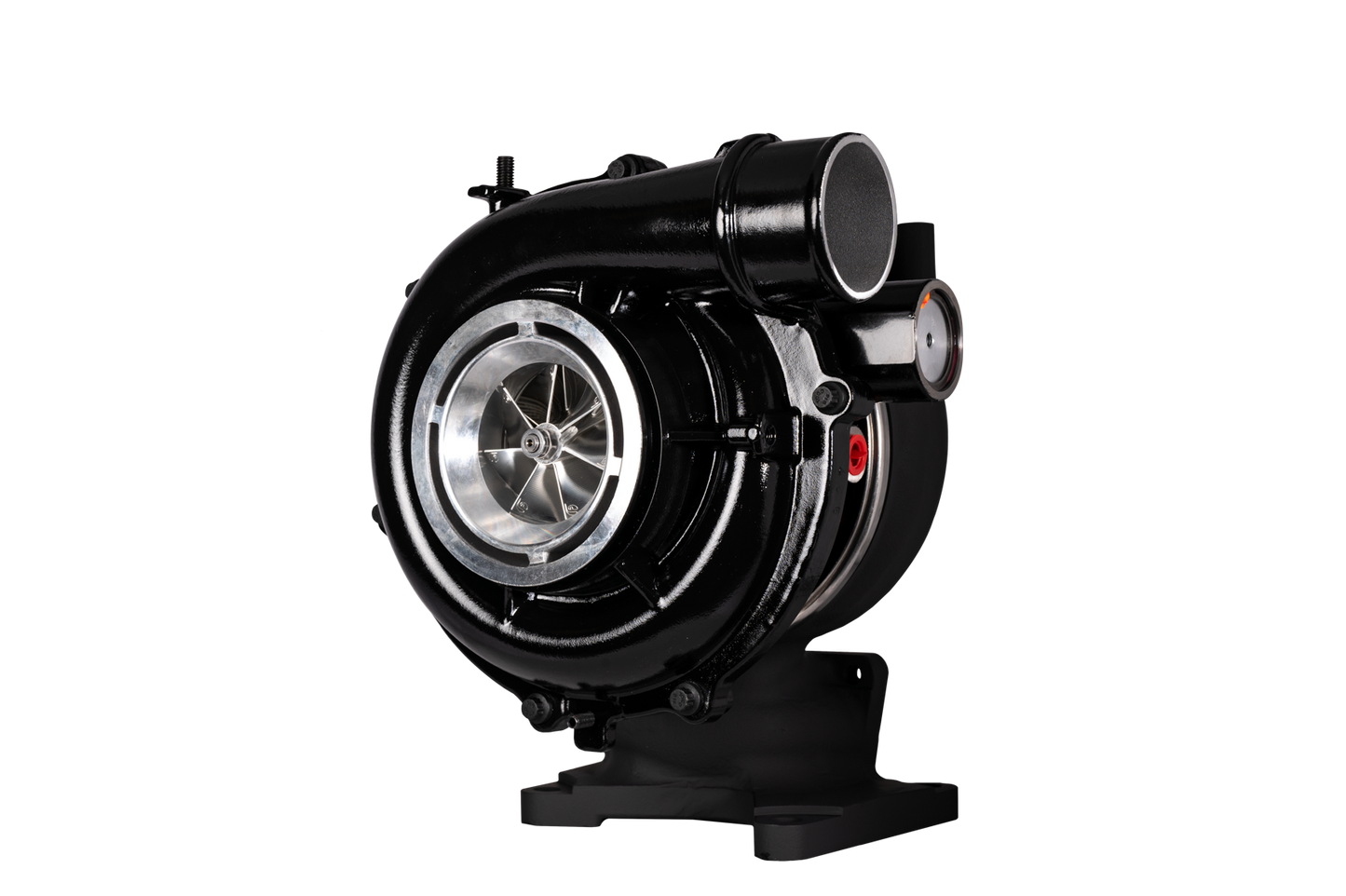

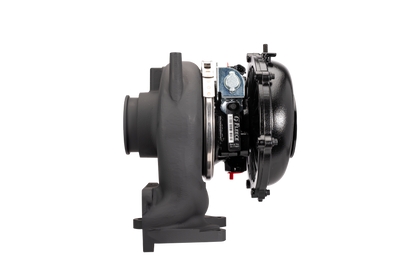

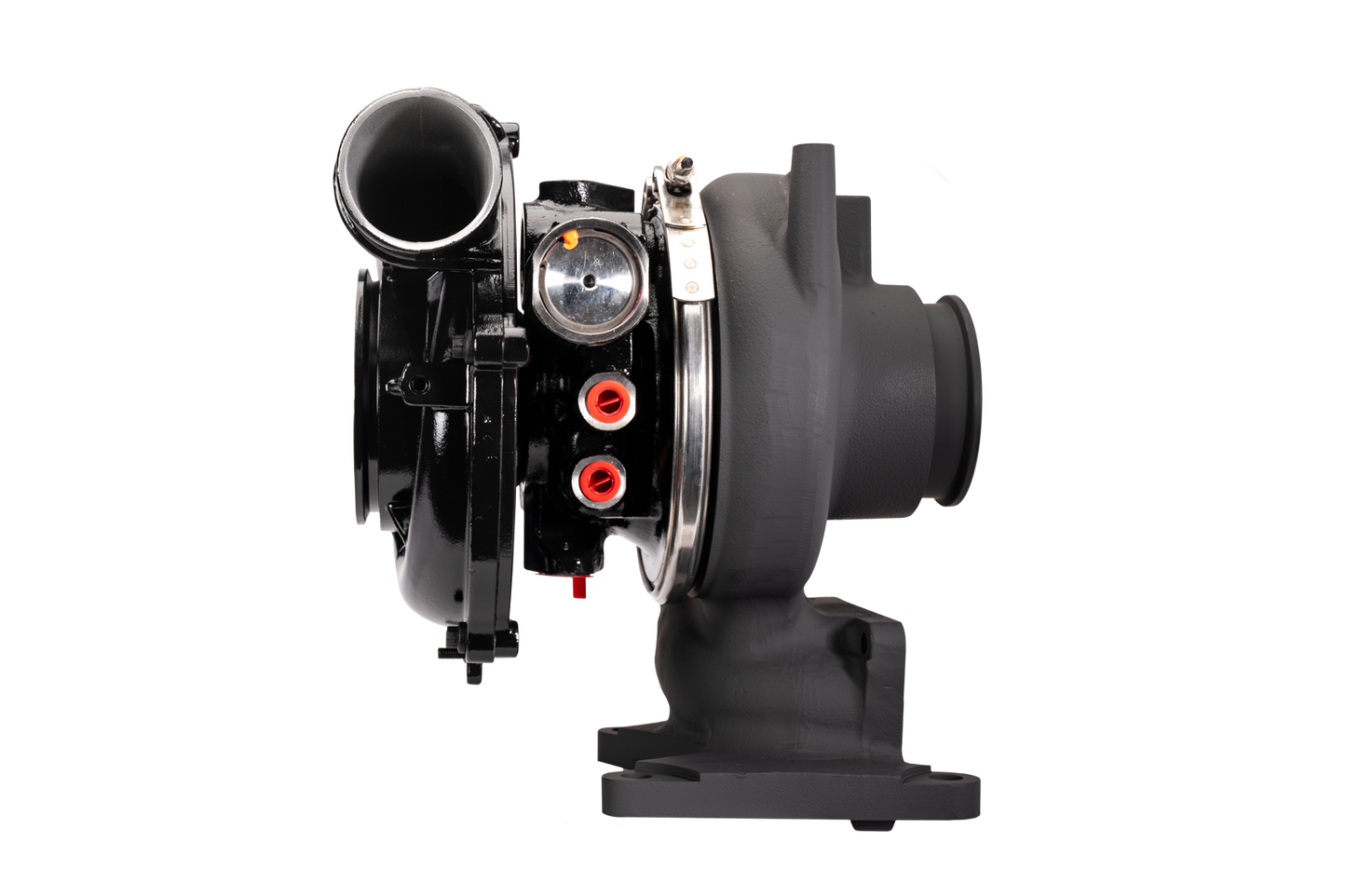

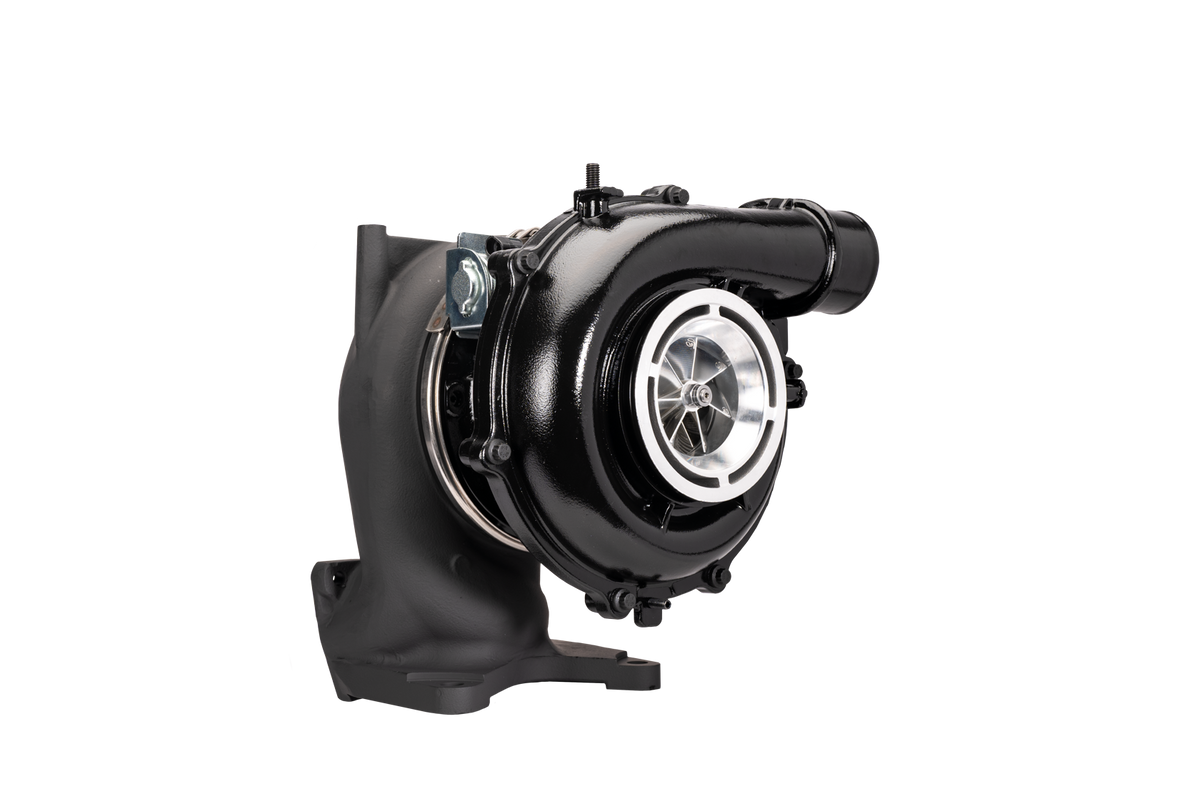

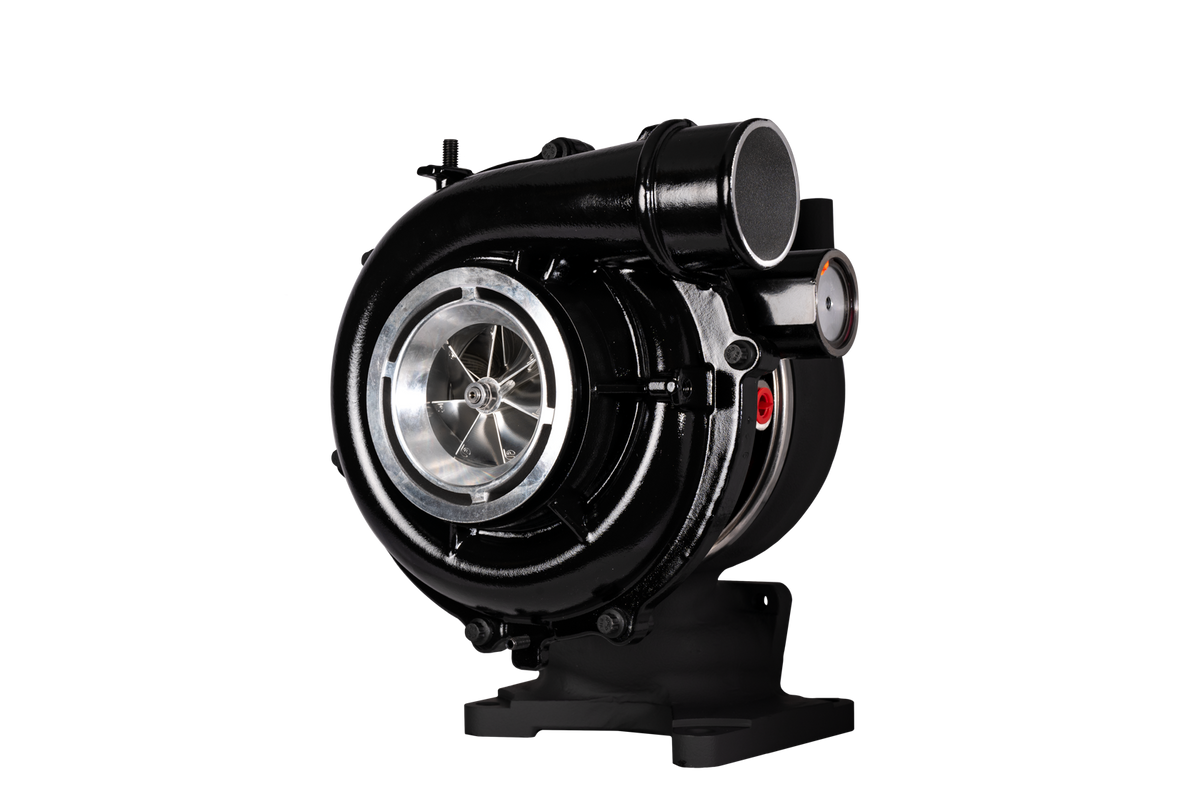

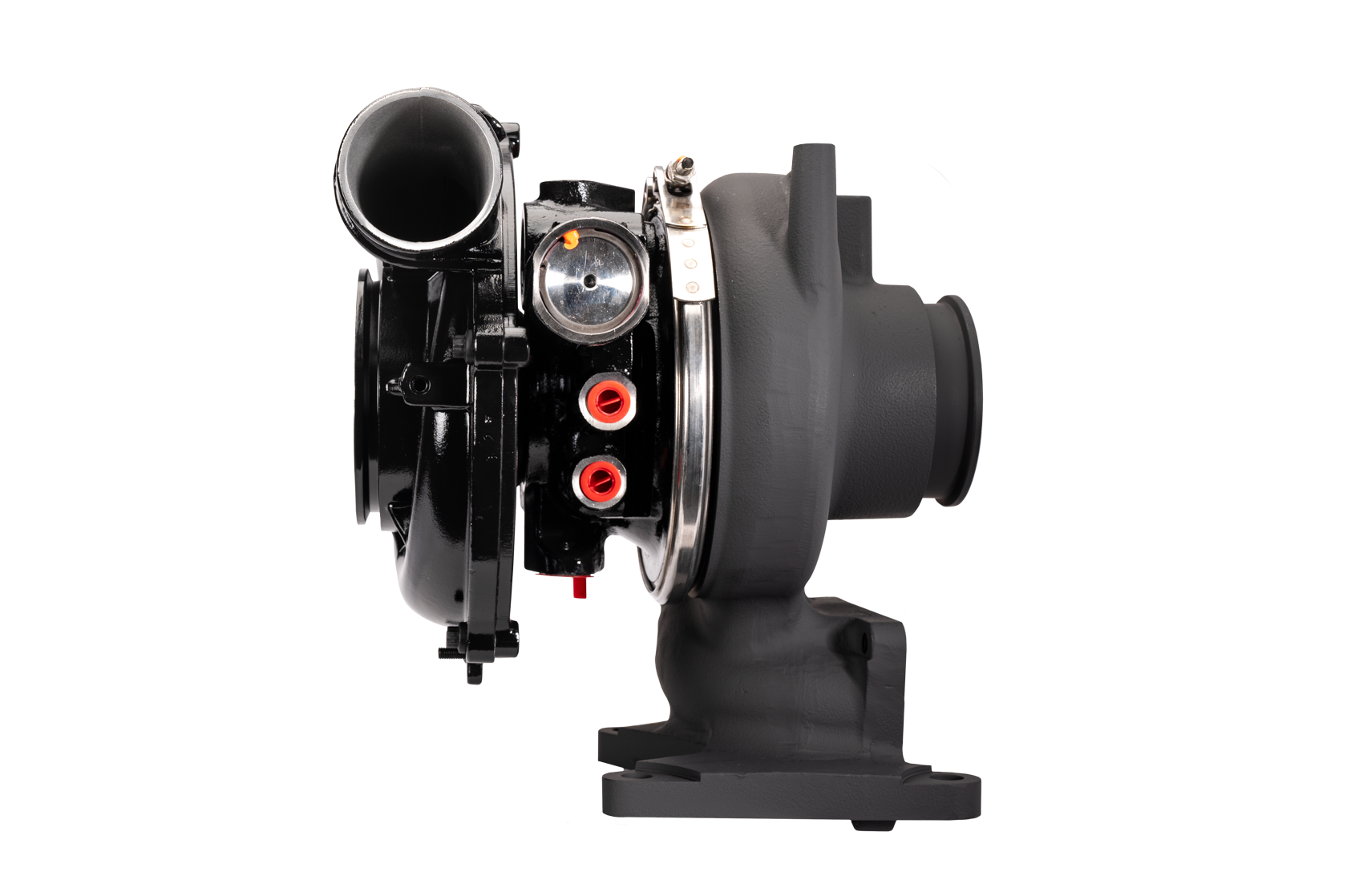

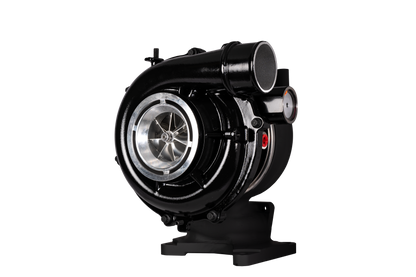

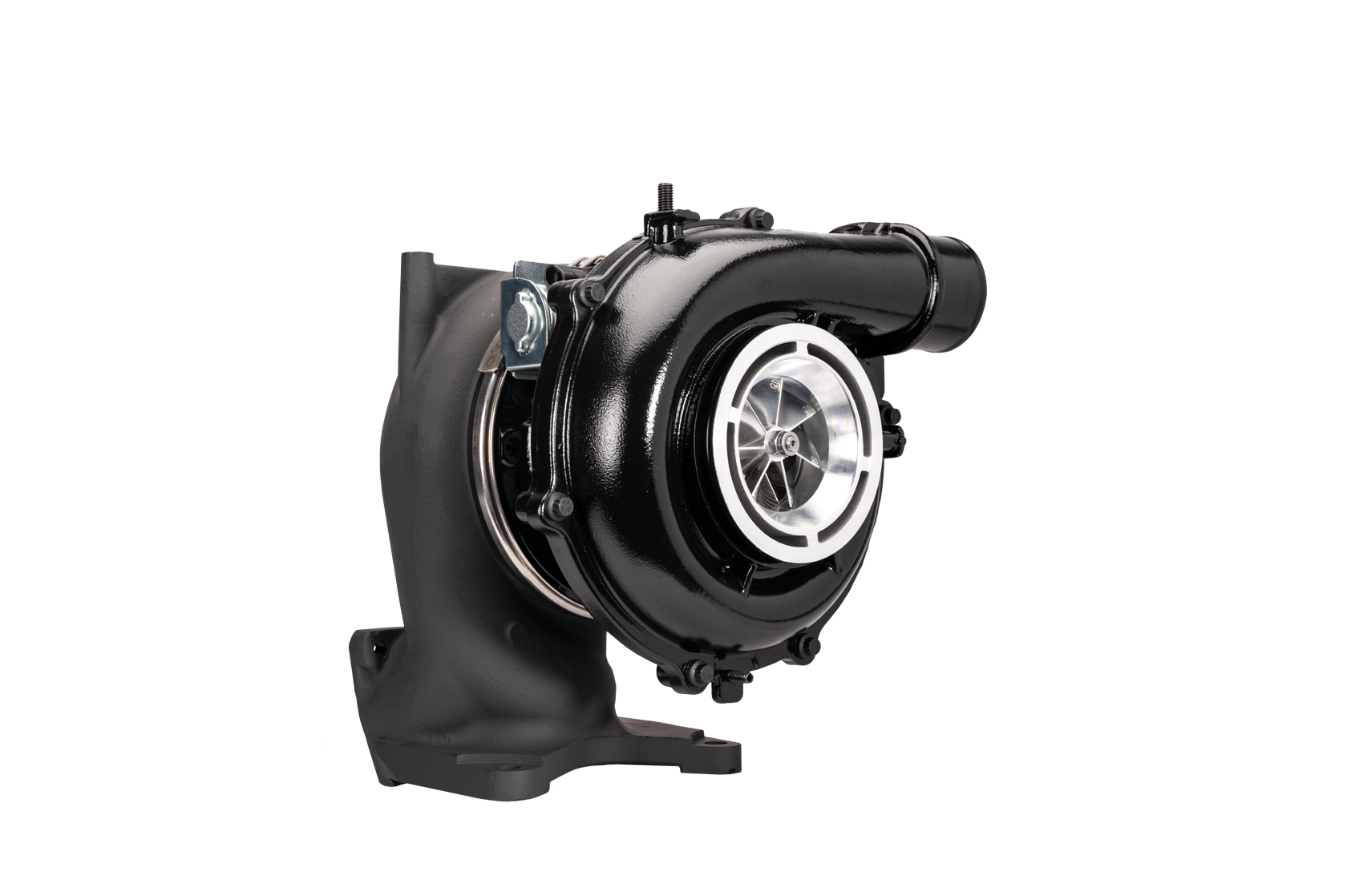

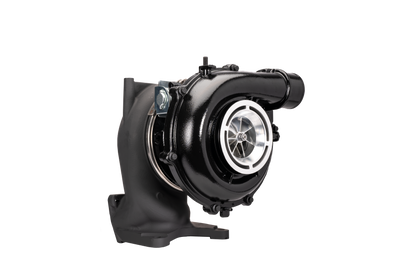

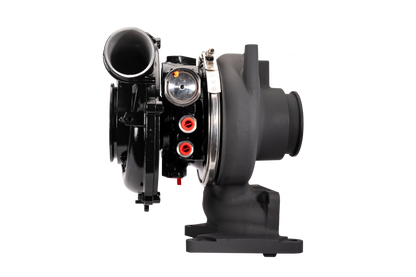

Fleece Cheetah 63mm VNT Turbocharger for 2004.5–2010 LLY/LBZ/LMM Duramax

Fleece Cheetah 63mm VNT Turbo for 2004.5–2010 Duramax

Upgrade your LLY, LBZ or LMM Duramax with the Fleece Performance Cheetah 63mm VNT Turbocharger.

Designed as a drop-in replacement for the factory turbo, the Cheetah combines a 63mm FMW compressor wheel with a 66mm high-flow turbine wheel to deliver strong spool-up, throttle response and increased top-end airflow while retaining the factory-style VNT configuration.

Rated for up to 625 RWHP with supporting modifications, it's built as a dual-purpose turbo for street-driven, towing and performance applications.

Features

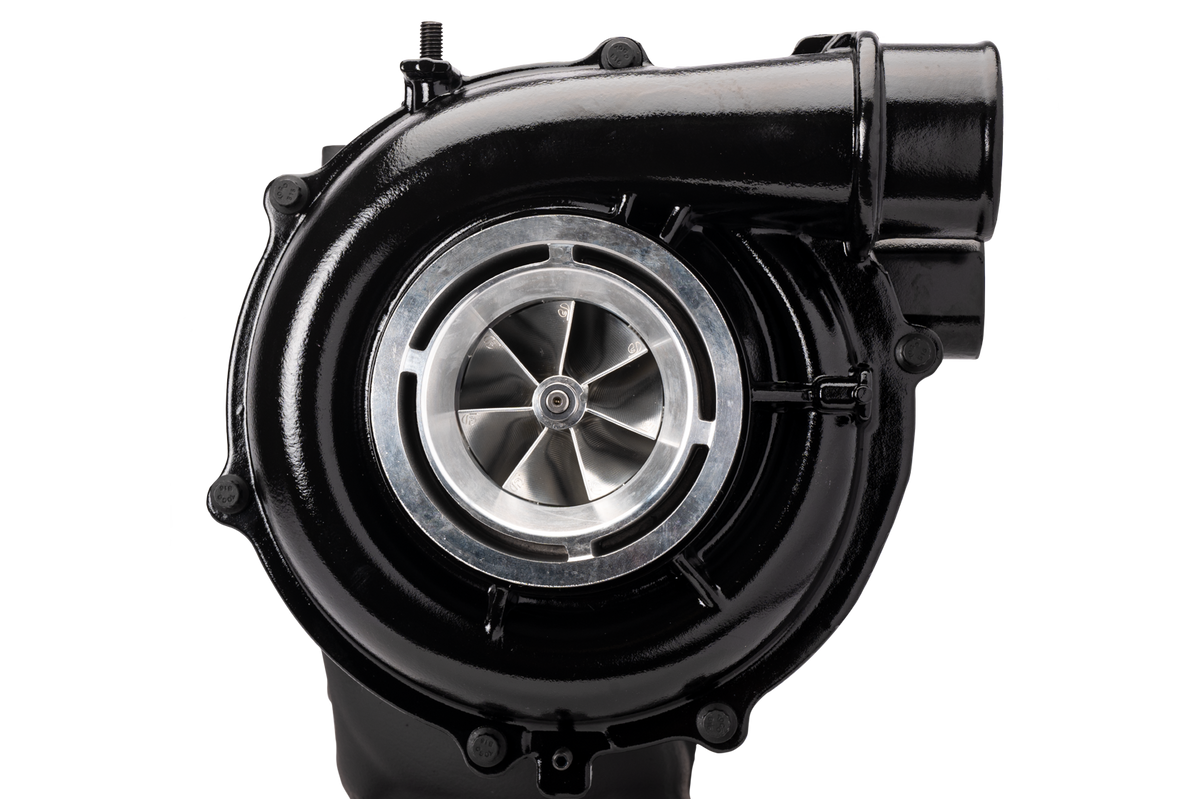

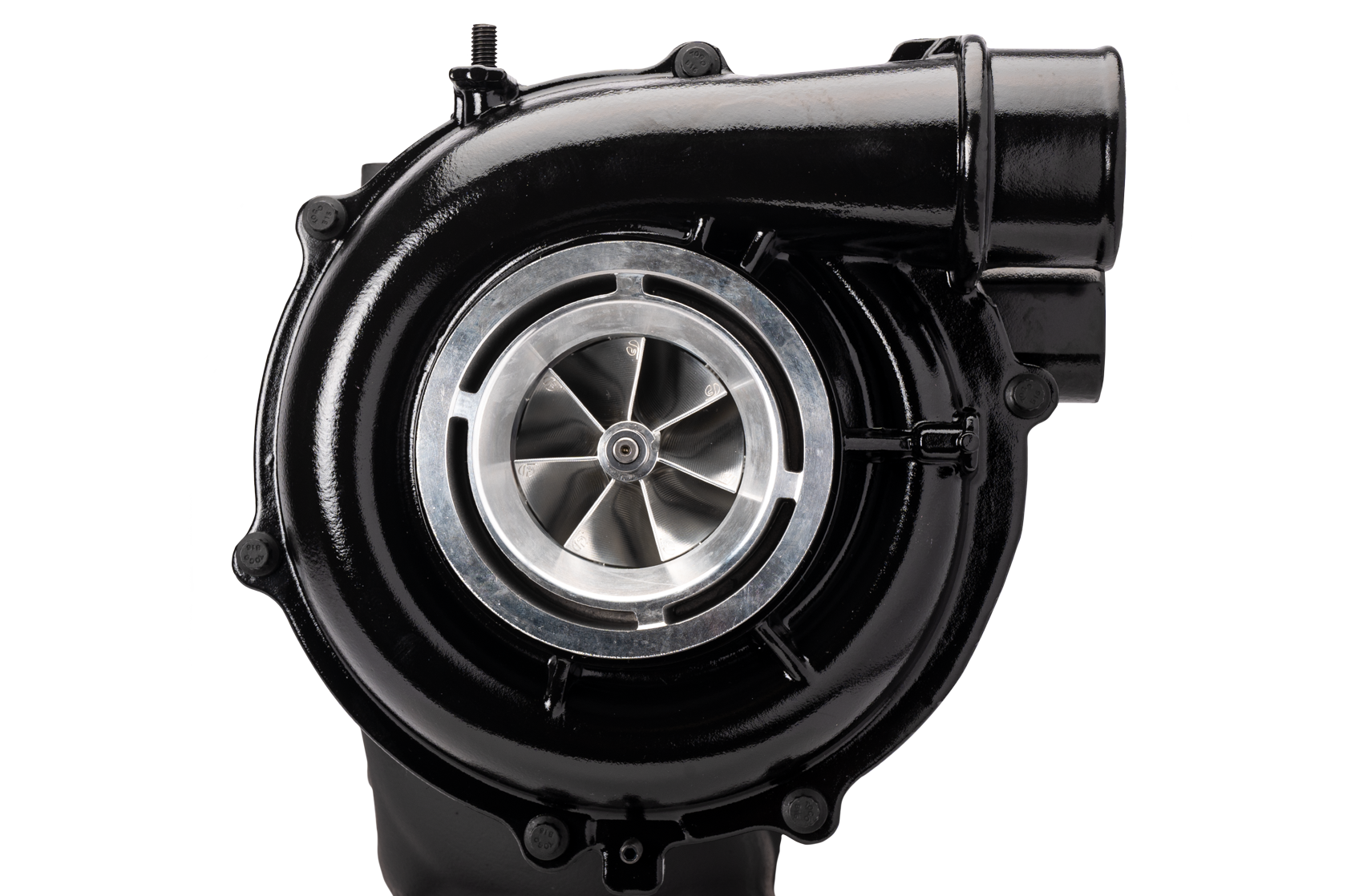

• 63mm FMW compressor wheel

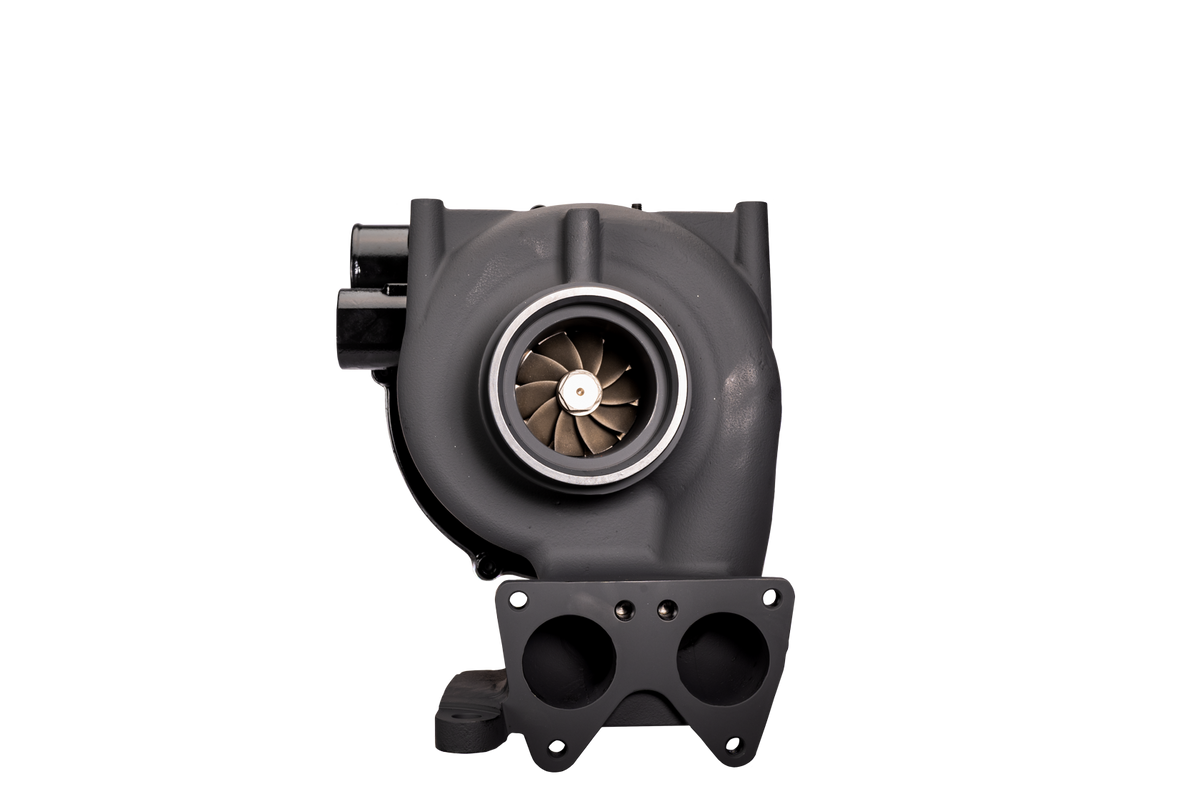

• 66mm high-flow turbine wheel
• Rated up to 625 RWHP with supporting modifications
• Variable nozzle turbocharger (VNT) design
• Quick spool-up and strong throttle response
• Stock-appearing factory housings
• Genuine Garrett turbocharger components
• Upgraded shaft bearings
• 360-degree thrust bearing
• Designed to support 40–45 PSI of boost
• Drop-in replacement for the factory turbo
• Retains factory systems and functionality
• 12-month Fleece parts warranty

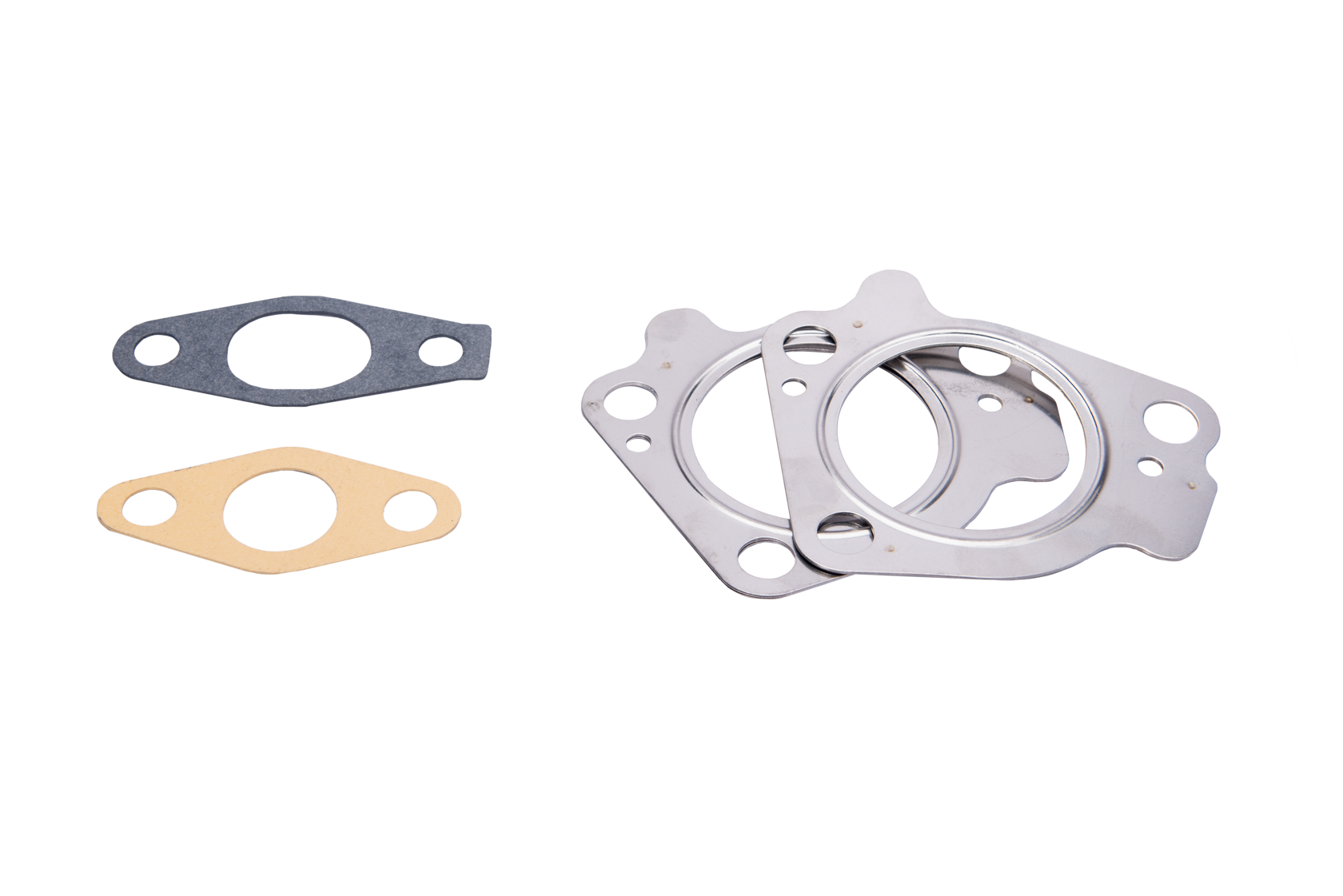

Included

• Cheetah turbocharger assembly

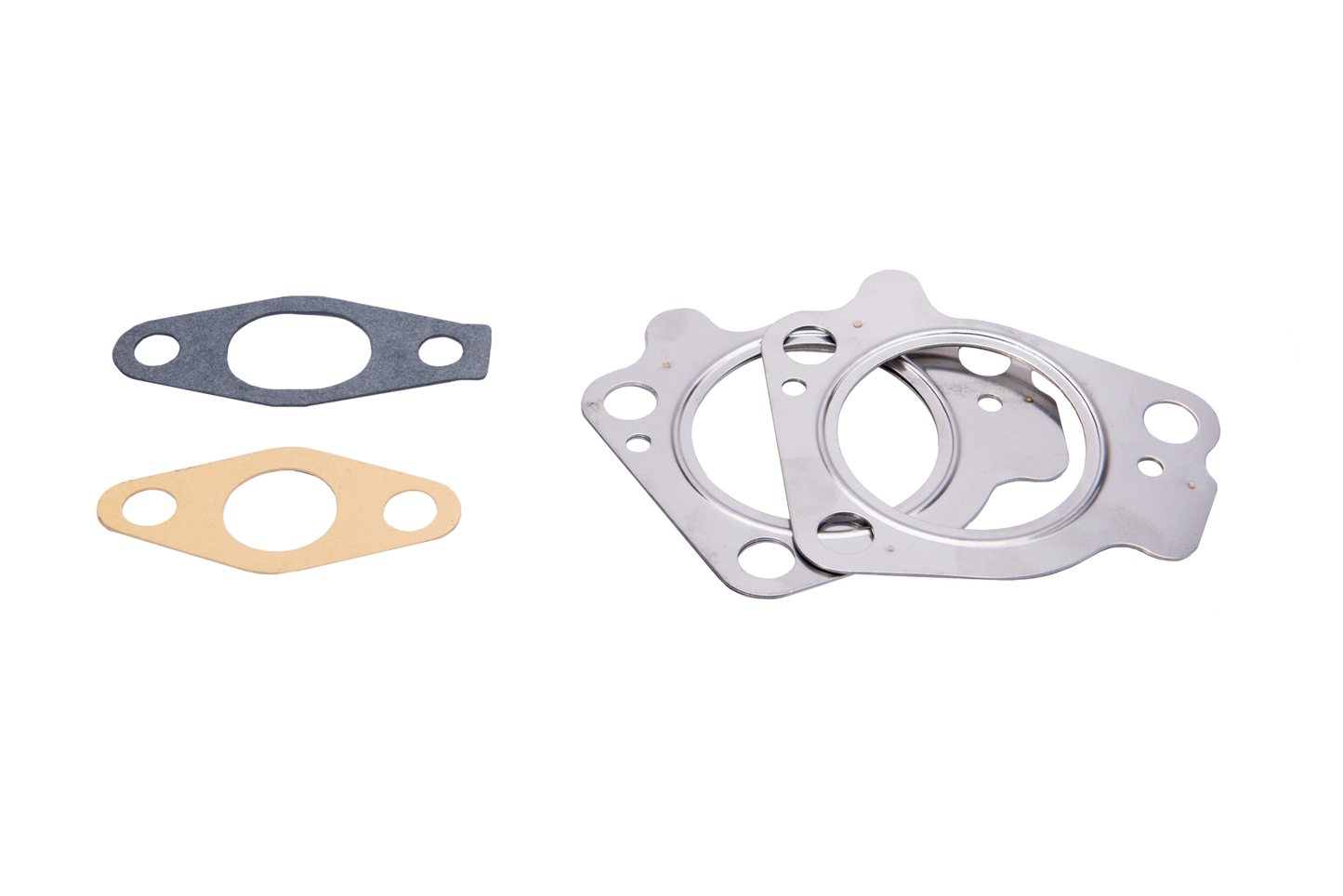

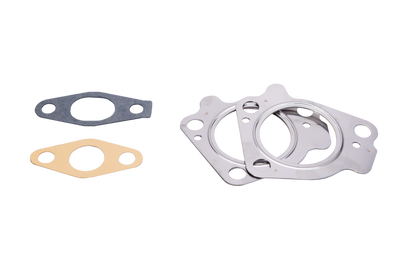

• Turbo oil drain gasket
• Two up-pipe gaskets
• Lower turbo drain gasket

Fitment

2004.5–2005 Chevrolet/GMC 2500/3500 | 6.6L LLY Duramax
2006–2007 Chevrolet/GMC 2500/3500 | 6.6L LLY/LBZ Duramax
2007.5–2010 Chevrolet/GMC 2500/3500 | 6.6L LMM Duramax

Emissions Compliance

CARB EO D-834-25
Fleece lists this turbocharger as emissions compliant for its applicable 2004.5–2010 GM 2500/3500 6.6L Duramax applications.
