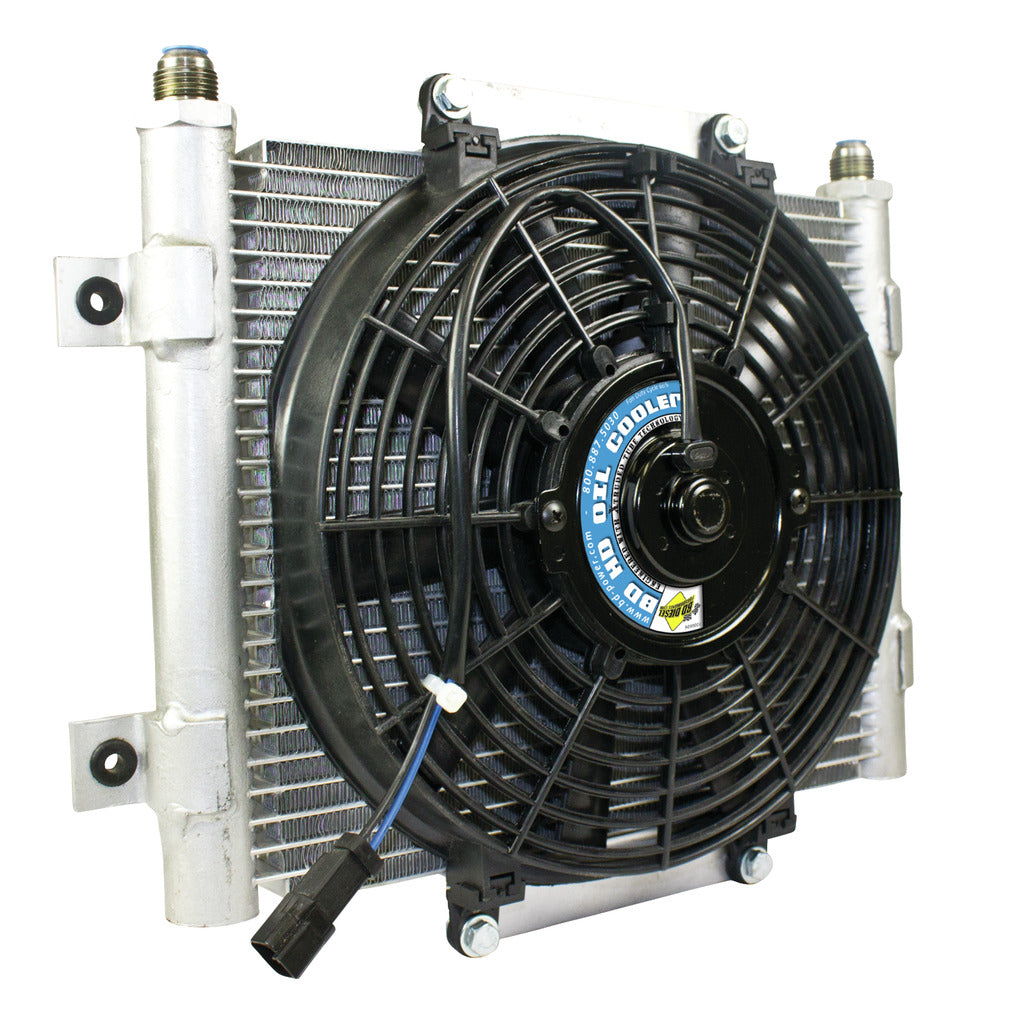

BD Diesel BD Xtrude Transmission Cooler with Fan -10 JIC Male Connection

22% more cooling over other designs

Cooler Assembly Only

200 Micro Extruded passages

Large surface area to transfer heat for external air flow cooling

Turbulent oil flow design promotes a more complete cooling

Large 5/8-inch ports prevents inlet/outlet restriction

Furnace brazed rails have been tested to 300psi of pressure

80-watt, 10-inch, 800 CFM electric fan

33,930 BTU/HR and in excess of 30,000 GVW!

Motor is IP54 with 65% duty cycle

• 22% more cooling over other designs
• Motor is IP54 with 65% duty cycle
• Cooler Assembly Only
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
